CONVEYOR SYSTEMS
Our conveyors are ideal for board transferring, hand grading, in an accumulation area, and many other ways. They fit well to connect your line to our notcher, chamfer, stackers and unscramblers, or to other pallet board machinery.
Home > Our Machines > Conveyor Systems
Conveyors For Your Application

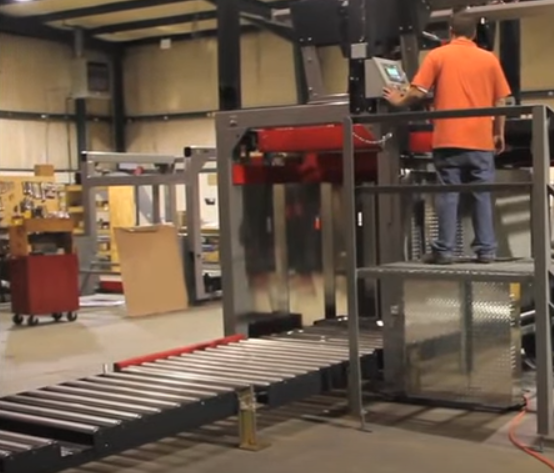

Here is a testing video of AIT’s Roller and Belt Conveyors integrated in a line: The HY400 Center Cut Saw with Turn Table Feeder, integrated roller infeed conveyor, and integrated belt exit conveyor.

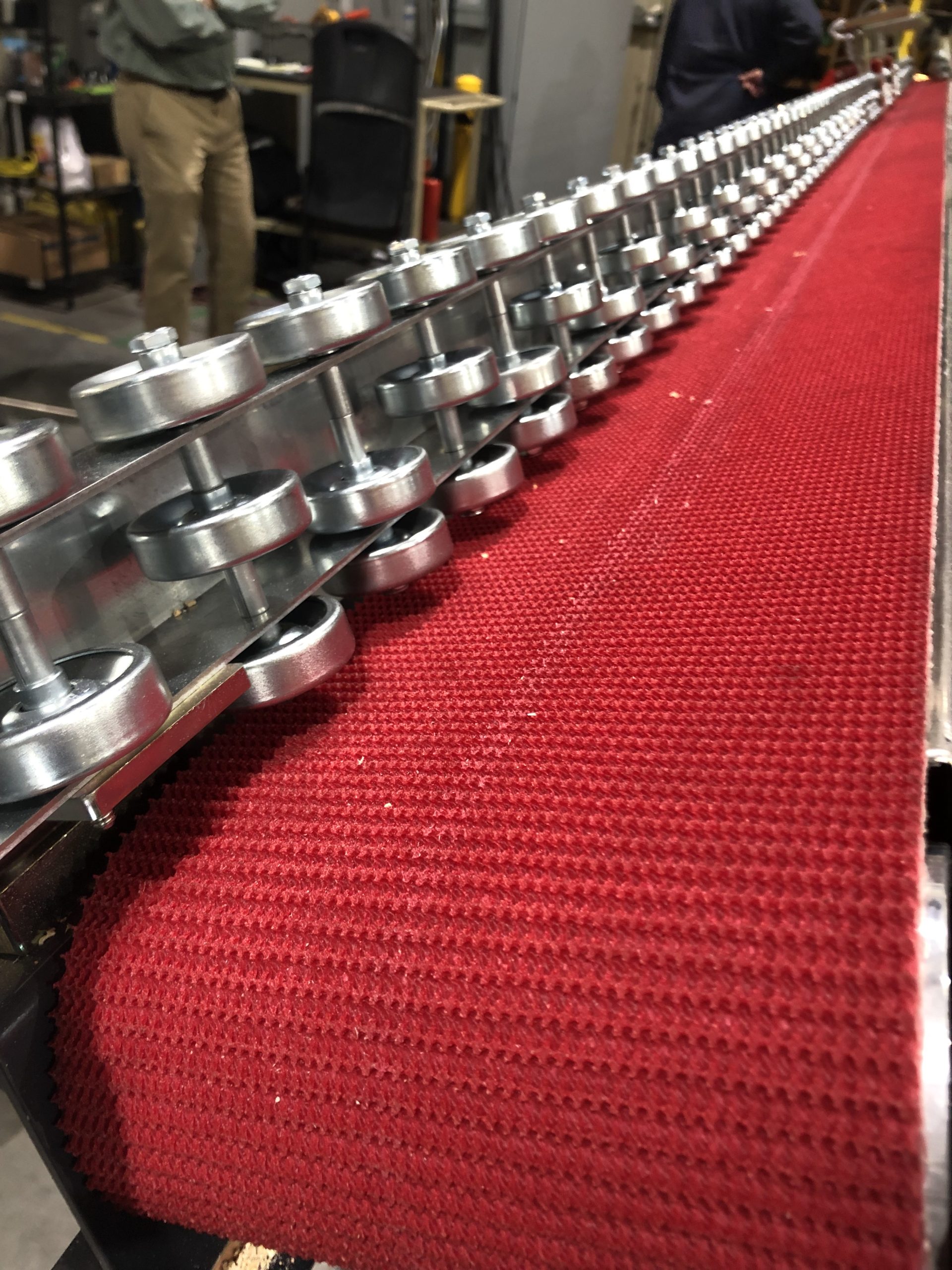

Universal belt conveyors
Features
- Belt conveyor that conveys boards linearly
- Path of travel is parallel to length of board
-
Used for feeding and exiting HY400, HYR400, HR400, and conveying boards to stacker lines
-
Type: Roller, Sheet Metal
-
Length: Full or Custom
Options
- Infeed Guides
- Entrance Guides
- Kick Offs
- VFD Control of conveyor
- E stops
- Smooth or Rough Belt
- Adjustable angle ride
- Accelerating Tire
Universal Roller conveyors
Features
- Conveyor consisting of powered steel rollers
- Used to convey cants linearly in a straight line, or as exit conveyors on M2L or TS
Options
- Dunnage Strapping
- Powered roller modules
- Gravity roller modules
- Fork truck tables
- Back stop
- VFD Control
- Estops
- Fork truck pocket sensor
- Integrated with other equipment

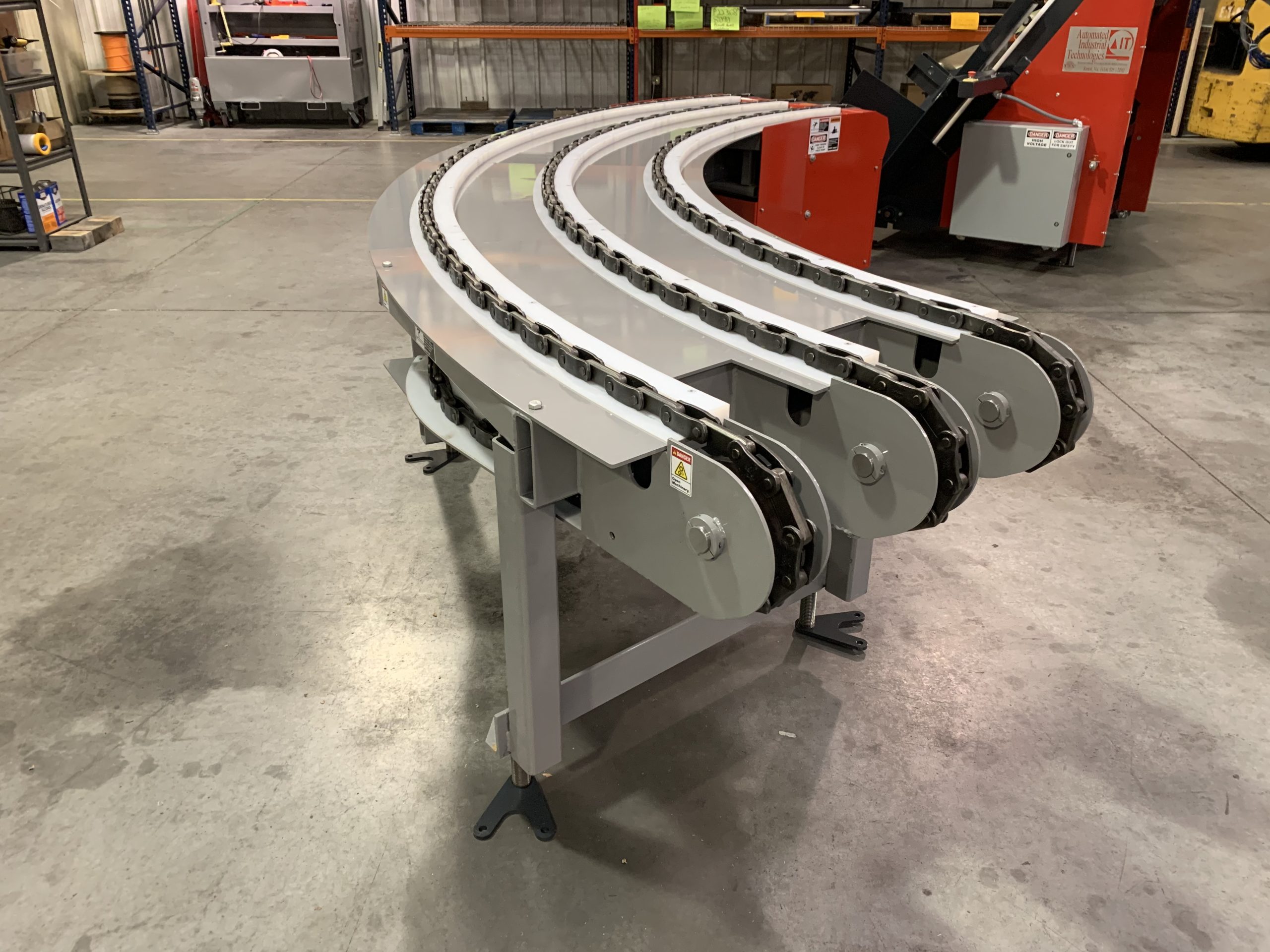

Universal Chain conveyors
Features
- Multi Stranded chain conveyor with board length perpendicular to the path of travel
- Chain Conveyor Used to convey boards linearly from one location to another, can be used for grading/ inspection of product, or accumulation providing seamless transitions
Options
- 2060 Chain
- Link V Belt
- Two, Three, and Four Strand, Transitions off conveyor to other equipment
- VFD Control
- Back stop
- VFD Control
- Estops
- Controls integrated with other equipment
Turn Table conveyors
Features
- Circular rotating table with guides
- Used to change board direction when board path is parallel to length direction, or to flip board orientation rotate board 90 degrees along length axis
Options
- Diameter Size
- Rotational speed
- VFD Controls
- Estops
- Controls integrated with other equipment
Contact Us
Would you like to receive more information about our Conveyors? Fill out the contact form and a member of our staff will reply as soon as possible.
